import logging as log
import numpy as np
import time

import qcodes as qc
from qcodes.logger.logger import start_all_logging
from qcodes.dataset import load_or_create_experiment, plot_dataset
from qcodes.dataset.measurements import Measurement
from qcodes.parameters import Parameter

from qcodes_contrib_drivers.drivers.Lakeshore.M81_SSM import M81_SSM

#start logging
start_all_logging()
log = log.getLogger()
Logging hadn't been started.
Activating auto-logging. Current session state plus future input saved.
Filename       : /home/jupyter-abi_g/.qcodes/logs/command_history.log
Mode           : append
Output logging : True
Raw input log  : False
Timestamping   : True
State          : active
Qcodes Logfile : /home/jupyter-abi_g/.qcodes/logs/250129-877027-qcodes.log

Connect to M81

[2]:
try:
    M81 = M81_SSM('M81','TCPIP::172.16.133.41::7777::SOCKET')
    M81.timeout(1)
except Exception as err:
    log.critical(err)
    print(f'Connection failed: {err}')

exp = load_or_create_experiment(experiment_name='M81 example')
Connected to: Lake Shore M81-6 (serial:LSA2PIC, firmware:2.1.2024120307) in 0.32s

Add M81 to station

[3]:
station = qc.Station()
station.add_component(M81)
[3]:
'M81'

View modules

[4]:
M81.show_system_info()
Fitted with 3 channel(s)
Source (S):
        1 : "VS-10"
        2 : "VS-10"
        3 : "BCS-10"
Sense  (M):
        1 : "CM-10"
        2 : "CM-10"
        3 : "VM-10"

Configure S3 and print snapshot

[5]:
M81.S3.shape('SINUSOID')
M81.S3.current_low_limit(-0.05)
M81.S3.current_high_limit(0.1)
M81.S3.current_peak_amplitude(0.1)

M81.S3.print_readable_snapshot(update = True)
M81_BCS_10:
        parameter                value
--------------------------------------------------------------------------------
cmf_enabled               :     True
cmf_node                  :     INTERNAL
coupling                  :     DC
coupling_auto_enabled     :     True
current_autorange_enabled :     True
current_high_limit        :     0.1 (A)
current_low_limit         :     -0.05 (A)
current_offset            :     0 (A)
current_peak_amplitude    :     0.1 (A)
current_range             :     0.1 (A)
current_rms_amplitude     :     0.070711 (A RMS)
disable_on_compliance     :     False
frequency                 :     11 (Hz)
guard_state               :     True
model                     :     BCS-10
output_enabled            :     False
serial                    :     LSA2OE9
shape                     :     SINUSOID
synchronize_enabled       :     False
synchronize_phase         :     0 (°)
synchronize_source        :     S1

Configure M1 and print snapshot

[8]:
M81.M1.mode('DC')

M81.M1.print_readable_snapshot(update = True)
M81_CM_10:
        parameter                    value
--------------------------------------------------------------------------------
bias_voltage                  : 0 (V)
bias_voltage_enabled          : True
calculated_resistance_source  : S1
current_autorange_enabled     : False
current_range                 : 1e-07 (A)
frequency_range_threshold     : 10 (% of -3 db)
input_filter_enabled          : False
input_filter_highpass_cutoff  : NONE (Hz)
input_filter_highpass_rolloff : 6 (dB/octave)
input_filter_lowpass_cutoff   : NONE (Hz)
input_filter_lowpass_rolloff  : 6 (dB/octave)
input_filter_optimization     : NOISE
mode                          : DC
model                         : CM-10
nplc                          : 10
serial                        : LSA2NS5

Read DC value from M1

[9]:
M81.M1.read_DC()
[9]:
1.24865750102757e-11

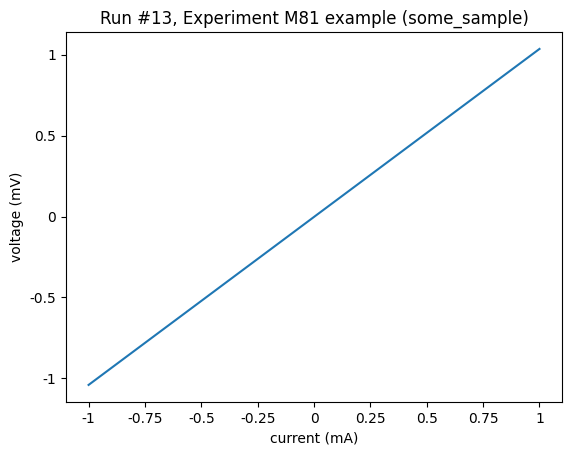

Run IV curve

[ ]:
meas = Measurement()

current = Parameter('current',
                    label='current',
                    unit='A')

voltage = Parameter('voltage',
                         label='voltage',
                         unit='V')

meas.register_parameter(current)
meas.register_parameter(voltage, setpoints=[current])

M81.S1.output_on()

with meas.run() as datasaver:
    meas_guid = datasaver.dataset.guid
    print(f'GUID: {meas_guid}')

    for x in np.linspace(-0.001, 0.001, 21):
        M81.S1.current_peak_amplitude(x)
        time.sleep(0.5)

        # read parameters
        curr = M81.S1.current_peak_amplitude()
        volt = M81.M1.read_DC()


        datasaver.add_result((current, curr),
                             (voltage, volt)
                            )

dataset = datasaver.dataset

M81.S1.output_off()
plot_dataset(dataset)
Starting experimental run with id: 13.
GUID: 4fc39ec5-0000-0000-0000-0193728ba050
([<Axes: title={'center': 'Run #13, Experiment M81 example (some_sample)'}, xlabel='current (mA)', ylabel='voltage (mV)'>],
 [None])
../_images/examples_Lakeshore_M81_SSM_Example_14_2.png

Data Streaming

[4]:
rate = 100
num_points = 2**8

data = M81.stream_data(rate, num_points, ('RTIMe',1),('SAMPlitude',1),('MDC',1), transpose_data=True)
Streaming...
Buffered points: 256
All data collected.
[ ]:
meas = Measurement()

timestamp = Parameter('timestamp',
                    label='timestamp',
                    unit='s')

current = Parameter('current',
                    label='current',
                    unit='A')

voltage = Parameter('voltage',
                         label='voltage',
                         unit='V')

meas.register_parameter(timestamp)
meas.register_parameter(current, setpoints=[timestamp])
meas.register_parameter(voltage, setpoints=[timestamp])

M81.S1.output_on()

with meas.run() as datasaver:
    try:
        data = M81.stream_data(rate, num_points, ('RTIMe',1),('SAMPlitude',1),('MDC',1))

        print('Saving data...')
        for i in range(0, len(data[0]), 1):

            # read parameters
            t = data[0][int(i)]
            i = data[1][int(i)]
            v = data[2][int(i)]


            # add data to measurement table
            datasaver.add_result((timestamp, t),
                                 (current, i),
                                 (voltage, v),
                                 )
    except Exception as err:
        log.critical(err)
        print(f'Error: {err}')

dataset = datasaver.dataset
print('Data saved.')

M81.S1.output_off()
Starting experimental run with id: 18.
Streaming...
Finished Streaming
All data collected.
Saving data...
Data saved.

Close connection to M81

[5]:
M81.close()
Connection closed to M81.
[ ]:
